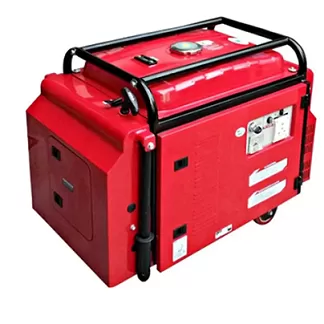

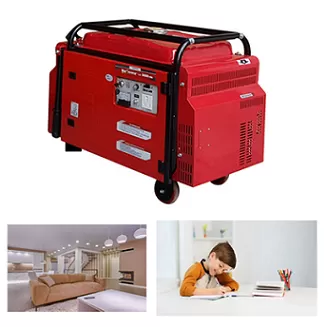

HPM 5.5KV Silent Petrol Start Kerosene Run Generator Recoil Start

 Application :

Low noise Portable Diesel Generator, fuel efficient, produces electricity at very economical rates. Wide usage Industrial & field job etc.

Specifications :

• Model Name :GE-3P-5500DS
• Brand :HPM
• 5.5KVA Genset with simple & rugged design having low Noise, Low maintenance & long life
• High Temperature Indicator & Alarm
• Suitable for 3 Phase 415 V industrial loads, Submersible Pump, Inductive & Motor Loads.

Generator

•  Max AC. Output VA: 5000
• Rated AC. Output VA :4300
• Rated Current Amps :5.9 Amp. Per Phase (415 Volts)
• NFB Amps : 6.5 Amps. Each Phase
• AC. Voltage  (No Load) :415 Volts ± 10 Volts, 50 Hz, Three Phase
• Alternator Max. Current Capacity16 Amps Per Phase

Alternator

• Alternator : Brushless, Rare Earth Magnetic Rotor, THD ≤ 2 %, Pure Sine Wave
• Type : 4-Stroke, OHV, Single Cylinder, Direct Injection, Swirl Chamber, Inclined type
• Bore x Stroke :  76*68 mm
• Displacement :  308cc

Engine

• Fuel : Diesel
• Fuel Tank Capacity : 20 Ltrs.
• Fuel Consumption :1.0 ltr/hr.
• Lube. Oil Capacity : 900 ml.
• Lubricating Oil Consumption : 4.1 gm./Hr.
• Oil Alert System : Yes
• Cooling Fan Indicator : Yes

Panel &Other Standard Features

• AMF Panel Auto & Remote Start Compatibility : yes
• Fuel Level Gauge : Yes
• Overload Protection (NFB) : Yes
• Costar Wheels : Yes
• Gross weight-KG : 145 Kg.

Description:
5.5KVA Genset with simple & rugged design having low Noise, Low maintenance & long life. Gives Regulated and Stable Power. General purpose use for homes, shops, commercial use or field jobs for light loads applications Able to run on cheaper fuel Kerosene and also on Petrol / LPG
