HPM 6 KW Petrol Welding Generator Recoil & Self Start

Specification :

Model : GE- W 8000Rs

D C WELDING

• Welding Output Current (Duty Cycle60%) : 250Amps
• Welding Output Current (Duty Cycle100%) : 200Amps
• Working Voltage : 20vto30V
• Open Circuit Voltage (OCV) : 65 Volt (Minimum)
• Welding Current Regulation (Amps) : 60 – 250 AMPS
• Rectifying Mode : SCR, Phase Controlled3-phase, Rectifying Bridge
• Maximum Electrode diameter : 2.6mmto 4.0mm

AC Generator

• Alternator Type : Brushless with Rear Earth Magnet Rotor
• Rated Ac Output : 4500VA
• Rated Output Current : 19.5 Amps
• AC. Voltageat No Load : 240Volts±10 Volts,SinglePhase
• AC. Voltageat Rated Load : 220Volts±10 Volts,SinglePhase
• Frequency (Adjustable) : 50to60Hz
• NFB Amps : 20 Amps
• Class of Insulation : F

ENGINE

• Model : HM192PY
• Type OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
• Maximum Power : 16.0 hp @ 3600rpm
• Borex Stroke : 92×67 mm
• Displacement : 445 cc
• Starting System : Recoil Start / Self Start
• Ignition System : TCI (Transistor Control Ignition)
• Fuel : Standard Petrol
• Fuel Tank Capacity : 20 Liters
• Fuel ConsumptionLtr./Hr : .60 % Duty Cycle2.0 Ltr./hr
• Continuous Operating Hour Approx :  10 hr
• Lube. Oil Capacity : 1200 ml
• Lubricating Oil Consumption : 4.3 gm./Hr.

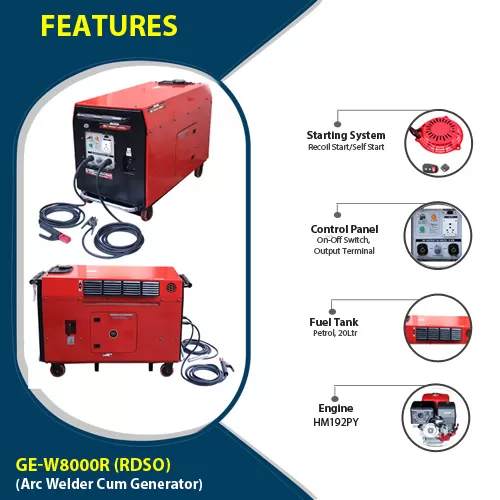

Panel & Other Standard Features

• Ampere Meter : Yes (0 – 300 Ampere)
• A.C. Circuit Protector : Yes
• A C.Pilot Lamp : Yes
• Engine Oil Protection : Yes (Electronic Oil Alert& Indicator)
• Fuel Level Gauge : Yes
• A.C. Output Sockets : Yes (1 Nos.)
• Costar Wheels (6 inch) : Yes (4 Nos.)
• Mono - Rail : Yes

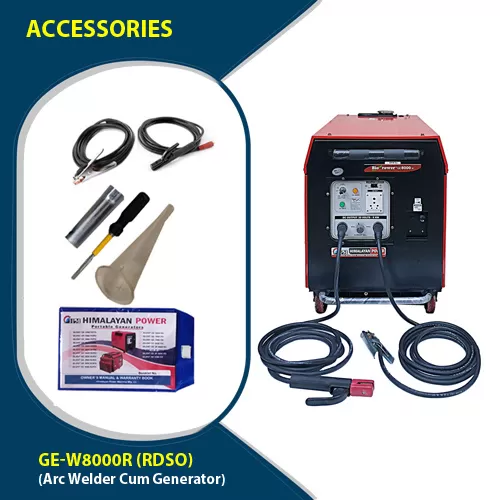

Standard Accessories

• AC Plug : 1Pec
• Tool Kit : 1 Set
• Welder Holder : 1 Set
• Earthing Clamp with 3Mtr.Cable : 1 Set
• Oil Funnel : 1 No
• Owner’sManual : 1 No
• Battery Terminal : 1 Set
• Battery Tray & Holding Set : 1 Set

Size & Weight

• DimensionLxWxH (mm) : 1200 x 530 x 710 mm
• Dry Weight (Kgs.) With Wheels& Battery(Without Accessories) : 149 Kg
• Battery Specification : 12 Volt 18 Ah (9+9)

Description :

Portable Arc Welder Cum Generator Machine Special design for Railway track Maintenance & for Heavy Welding Jobs, up to 5 mm Electrode.
