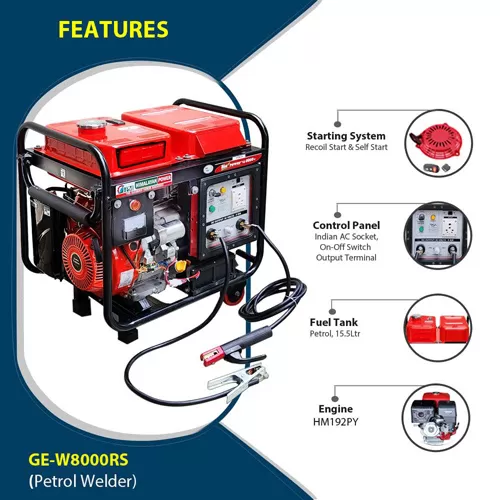

HPM 5 KVA Petrol Welding Generator Recoil & Self Start

Specification :

Model : GE W 8000 RS

D C WELDING

• WeldingOutput Current (Duty Cycle60%) : 275Amps
• WeldingOutput Current (Duty Cycle100%) : 200Amps
• WorkingVoltage : 20vto35V
• OpenCircuit Voltage (OCV) : 65 Volt (Minimum)
• Welding Current Regulation (Amps) : 75 – 275 AMPS
• Rectifying Mode :SCR,PhaseControlled3-phase,RectifyingBridge
• MaximumElectrodediameter : 2.6mmto 5.0mm

AC Generator

• Alternator Type : Brushless withRear Earth Magnet Rotor
• Maximum Ac Output : 5000VA
• Rated Output Current : 17.4Amps
• AC. Voltageat No Load : 240Volts±10 Volts,Single Phase
• AC. Voltageat  Rated Load : 220Volts±10 Volts,SinglePhase
• Frequency (Adjustable) : 50to60Hz.
• NFB Amps : 18Amps
• Classof Insulation : F

ENGINE

• Model : HM192PY
• Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
• Maximum Power : 16.0 hp @ 3600rpm
• Borex Stroke : 92×67 mm
• Displacement : 445 cc
• StartingSystem : Recoil Start / Self Start
• Ignition System : TCI (Transistor Control Ignition)
• Fuel : Standard Petrol
• Fuel TankCapacity : 15.5 Liters
• Fuel ConsumptionLtr./Hr. : 60 % Duty Cycle2.0 Ltr./hr
• Continuous Operating Hour :  Approx. 8 hr
• Lube. OilCapacity : 1200 ml
• Lubricating Oil Consumption : 4.3 gm./Hr.

Standard Accessories

• AC Plug : 1Pcs
• Tool Kit : 1 Set
• Welder Holder 1 Set
• Earthing Clampwith3 Mtr. Cable : 1 Set
• Oil Funnel : 1 No
• Owner’s Manual :1 No
• Battery Terminal : 1 Set
• Battery Tray & Holding Set : 1 Set

Panel &Other Standard Features

• A.C. Circuit Protector (NFB) : Yes
• A C.Pilot Lamp : Yes
• EngineOil Protection : Yes (ElectronicOilAlert& Indicator)
• Fuel Level Gauge : Yes
• A.C. Output Sockets : Yes (1 Nos.)
• Costar Wheels and handles L : Yes (1 Set)

Size & Weight

• DimensionLxWxH (mm) : 670 x 510 x 670 mm
• Dry Weight (Kgs.) With Wheels& Battery : 103 KG
• Battery Specification : 12 Volt 25 Ah  Size =190×120×225 (L×W×H)

Description :

Portable Arc Welder Cum Generator Machine Suitable for All types of General Purpose Structural Welding, Light, & Heavy Welding Jobs, up to 5 mm Electrode.
