HPM 3 KVA Petrol Start LPG Run Generator


Specification :

Model Name : HP-3500E-LPG

Generator

• Max AC. Output VA : 2800
• Rated AC. Output VA : 2500
• Rated Current Amps : 10.9
• NFB Amps : 11
• AC. Voltage at Rated Load : 225 Volts ± 10 Volt  50 Hz, Single Phase
• AC. Voltage at No Load : 225 Volts ± 10 Volt

Alternator

• Alternator Max. Current Capacity : 12 Amps
• Alternator : Self-Excitation & Constant Voltage (With AVR), THD ≤ 25%

Engine

• Model : HM170P
• Type : OHV25°Inclined,Single Cylinder,4 Strokes, S.I, Forced Air Cooling
• Maximum Power : 6.5 HP @ 3600
• Bore x Stroke : 70x58 mm
• Displacement : 223cc
• Starting System : Recoil Start+Self Start
• Fuel : Petrol + LPG
• Fuel Tank Capacity : Petrol -12 Ltr
• Fuel Consumption : Petrol 1.3 ltr/hr, Approx
• Continues Running (With One Filling) : Approx . 9 Hrs. on Petrolor> 22 hours Per LPG Cylinder
• Lube. Oil Capacity : 600 ml
• Lubricating Oil Consumption : 2.5 gm./Hr
• Sound level (Db) (from 1 meter)<86Db

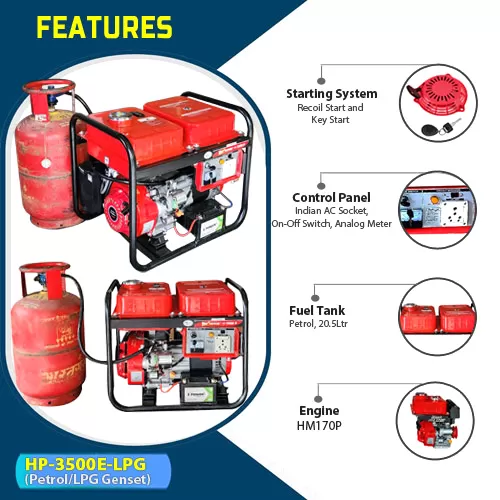

Panel &Other Standard Features

• Voltmeter : Yes (Analogue)
• Digital Hour Meter : No
• Oil Alert System : YesL
• PG/ Gas Fuel Compatibility : Yes
• Overload Protection (NFB) : Yes

Size & Weight

• Approx. Weight :50 KG
• Dimension LxWxH (mm) : 600x445x530  mm
• Battery Specification : 12 Volt 9 Ah

Description :

General Purpose Use For Homes, Shops Photo Copier Commercial Use Or Field Jobs For Running Electrical Loads of 2.5 KVA Capacity.
