HPM 10 KVA Portable Petrol Generator Recoil & Self Start

HPM 10 KVA Portable Petrol Generator Recoil & Self Start

Specification :

Model : HP-3P-13000E

Generator

• Max AC. Output VA : 10000
• Rated AC. Output VA : 8000
• Rated Current Amps :11 Amps per phase (415 Volts)
• NFB Amps : 14 Amps. each phase
• AC. Voltage  (On Load) : 415 Volts ± 10 Volts, 50 Hz, Three Phase

Alternator

• Alternator Max. Current Capacity : 24 Amps. Per Phase
• Alternator : Brushless, Rare Earth Magnetic Rotor, THD ≤ 2 %, Pure Sine Wave

Engine

• Model : HM192PC
• Type : OHV25°Inclined,Single Cylinder,4 strokes, S.I, Forced Air Cooling
• Maximum Power :16.0 hp @ 3600rpm
• Bore x Stroke : 92×67 mm
• Displacement : 460 cc

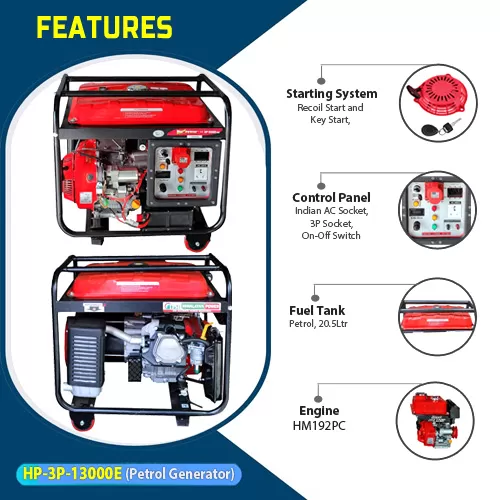

• Starting System : Recoil Start and Self Start, Remote /Auto Start
• Fuel : Petrol
• Fuel Tank Capacity : 20.5 Ltr.
• Fuel Consumption : Petrol 3.1 Ltr./Hr. Approx.
• Lube. Oil Capacity : 1200 ml
• Lubricating Oil Consumption : 4.3 gm./Hr
• Sound level (Db) (At 1 meter) : <86Db

Panel &Other Standard Features

• Oil Alert System : Yes
• LPG/ Gas Fuel Compatibility : No
• AMF Panel Auto & Remote Start Compatibility : Yes
• Fuel Level Gauge : Yes
• Overload Protection (NFB) : Yes

Size & Weight

• Approx. weight : KG90 KG
• Dimension LxWxH (mm) : 750x550x675 mm
• Battery Specification :12V -13Ah Lithium Iron Phosphate Battery

Description :

Most Suitable for running 3 phase load like :Air Compressors, Motors & Machines, Submersible Pump, Deep Freezers, Plasma Cutter,  Industrial Loads.
