HPM 1KVA Petrol Inverter Generator Recoil Start

Specification

• Product Type: Normal Generator
• Brand: HPM
• Weight (Approx.) : 16 kg
• Fuel Used : Petrol
• Model No. : Oasis UL-10i

Generator

• Max AC. Output VA: 1000
• Rated AC. Output VA: 750
• DC Output : 5V-20V DC Panel
• Max AC. Output VA  :   900
• Rated AC. Output VA  :    750
• Rated Current Amps :  3.3
• NFB Amps  :  3.5
• Rated AC. Voltage  :  230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%

Alternator :

• Alternator Max. Current Capacity  :  6 Amps.
• Alternator  :   Brushless, Permanent Magnetic Alternator with PSW inverter Technology

DC Outputs

• DC 12 V – 100 Watt, CG Port
• Continuous Output Current  :     8 A (Max. 100 Watt)
• DC Outputs - 5V to 20 V & DC Ports
• DC Output Short-circuit Protection  :   Yes (Disconnect Load Recovery)
• 12V DC Output Over Load Current Protection :    Yes >8 A (Disconnected LoadRecovery)
• USB Output Fast Charging QC 3.0   :  1* 5V - 12V DC (18W-Max)  5V3A, 9V 2A, 12V 1.5A
• Type - C USB  :   1* 'C' Type - 1* USB C PD 2.0 (30W)  5V 3A, 9V 3A, 12V 1.5A 15 V 1.5A 20 V 1.5A

Engine


• Model  :  GE 152P
• Type  :  Side Valve, vertical, single cylinder,4 strokes, S.I, Forced air cooling
• Maximum Power  :   1.4Kw/3600rpm
• Bore x Stroke  :  52mm×46mm
• Displacement  :   97.6cc
• Starting System : Recoil Start
• Fuel    :    Petrol
• Fuel Tank Capacity   :   Petrol -1.4 Ltr.
• Fuel Consumption   :  0.50 ltr/hr, approx. (At rated Load)
• Lube. Oil Capacity   :  350 ml.
• Lubricating Oil Consumption   :   ≤6.5g/kW .h
• Continues Running (With One Filling)   :  Approximately 2.5 - 3 Hrs.
• Sound level (Db) (from 1 meter) : <86Db

Engine


• Model  :  GE 152P
• Type  :  Side Valve, vertical, single cylinder,4 strokes, S.I, Forced air cooling
• Maximum Power  :   1.4Kw/3600rpm
• Bore x Stroke  :  52mm×46mm
• Displacement  :   97.6cc
• Starting System : Recoil Start
• Fuel    :    Petrol
• Fuel Tank Capacity   :   Petrol -1.4 Ltr.
• Fuel Consumption   :  0.50 ltr/hr, approx. (At rated Load)
• Lube. Oil Capacity   :  350 ml.
• Lubricating Oil Consumption   :   ≤6.5g/kW .h
• Continues Running (With One Filling)   :  Approximately 2.5 - 3 Hrs.
• Sound level (Db) (from 1 meter) : <86Db

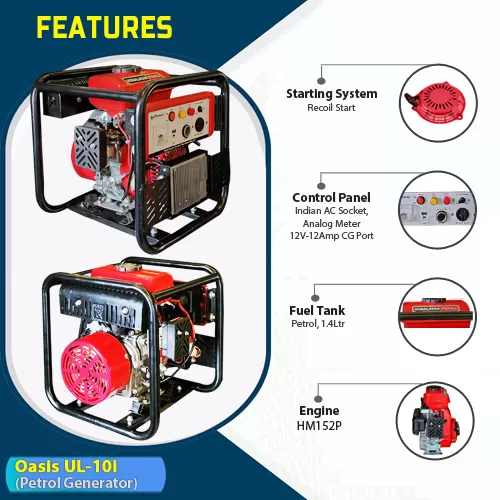

Panel & Other Standard Features


• Voltmeter  :  Yes (Analogue)
• Output Indicator   :    Yes
• Over Load Indicator  :   Yes
• Digital Hour Meter  :  No
• Oil Alert System :   Yes
• LPG/ Gas Fuel Compatibility  :   Yes (Optional)
• AMF Panel Auto & Remote Start Compatibility  :    No
• Fuel Level Gauge   :  No
• Overload Protection (NFB)    :  Yes

Packing


• Approx. Weight  : 18 Kg
• Dimension LxWxH (mm)   :   360x356x400

Description :

The 1 KVA Petrol Inverter Generator, Model Oasis UL-10i with Recoil Start is designed to power sensitive electronic devices and appliances safely, without risk of damage or interference. By inverting electricity, this generator ensures a cleaner and more reliable power source for your sensitive electronics. It is compact, quiet, and highly energy-efficient, making it an ideal choice for those looking for a portable and reliable power solution.

Application :

• Most Useful for Army Posted at Hilly Terrain and Snowy hilly tops. (Soldiers Can Carry on their Shoulders)
• Due To Light Weight Ideal for Field Jobs and Mobile Applications, Picnic Camp Application.
