HPM 9.KW Welding Generator Recoil & Self Start

HPM 9.KW Welding Generator Recoil & Self Start

Specification :

Model : HPW – 350 D

D C WELDING

• Maximum Output (Duty Cycle 60%) : 300 Amps
• Maximum Output (Duty Cycle 100%) : 275 Amps
• Working Voltage : 20v to 39 v
• Open Circuit Voltage : 80 Volt
• Current Regulation Amps : 60-325
• Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying BridgeTwin SCR Block
• Electrode diameter : 3 mm to 6.0 mm
• Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor

ENGINE

• Model :  HM192P
• Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
• Maximum Power : 16HP
• Bore x Stroke : 92x67
• Displacement : 460cc
• Starting System : Recoil Start / Self Start
• Ignition System : TCI (Transistor Control Ignition)
• Fuel : Standard Petrol
• Fuel Tank Capacity : 15.5 Liters
• Fuel Consumption # Ltr./Hr. : 2.0 Ltr./hr
• Continuous Operating HourApprox :  8 hr
• Lube. Oil Capacity : 1200 ml
• Lubricating Oil Consumption : 4.3 gm./Hr

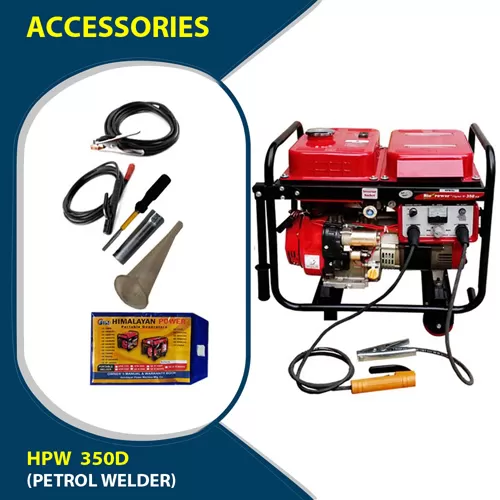

Standard Accessories

• Tool Kit : 1 Set
• Welder Holder : 1 Set
• Earthing Clamp with 3Mtr. Cable : 1 Set
• Oil Funnel : 1 No
• Owner’s Manual : 1 No
• Battery Terminal : 1 Set
• Battery Tray & Holding Set : 1 Set

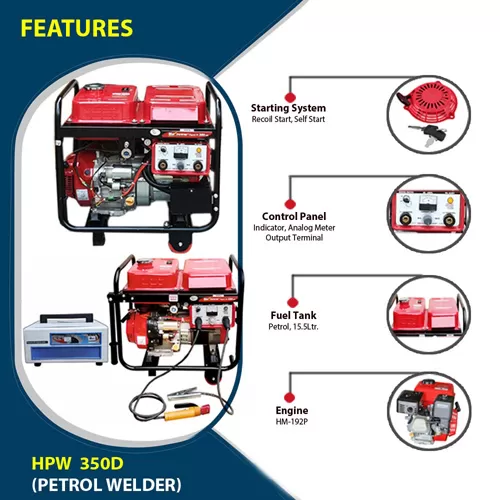

Panel &Other Standard Features

• Aux. AC Output 230 Volt - 50 Hz : Invertor 3.0 KVA – 230 Volt AC, 50 Hz (Optional)
• Overload Protection (NFB) : Yes (Inverter)
• Power Indicator : No
• Ampere Meter :  Yes
• Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
• Fuel Level Gauge : Yes
• Costar Wheels and handles : Yes (1 Set)

Size & Weight

• Dimension LxWxH (mm) : 670 x 510 x 670 mm
• Dry Weight (Kgs.) Without Battery : 82 Kgs
• Battery Specification : 12 Volt 25 Ah  Size =190×120×225 (L×W×H)

Description :

Most Portable, Professional &High Power Arc Welding Machine Suitable for High Class All type Weldings Including Structural Welding Rods 7018 Size 5mm Electrode.
