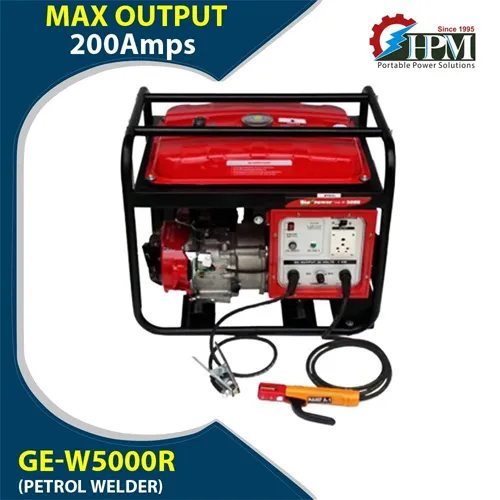

HPM 3KVA Petrol Welding Generator Recoil Start
Specification :
Model : GE-W 5000 R
DC WELDING
- Maximum Welding Current : 200 Amps
- Rated Welding Output Current (Duty Cycle60%) : 175Amps
- Working Voltage : 20vto30v
- Open Circuit Voltage (OCV) : 65 Volt (Minimum)
- Welding Current Regulation (Amps) : 75 – 175 AMPS
- Rectifying Mode : SCR,PhaseControlled3-phase,Rectifying Bridge
- Maximum Electrode diameter : 2.6mmto 4.0mm
AC GENERATOR
- Type : Brush less with Rear Earth Magnet Rotor
- Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor
- Maximum Power (VA) : 2000 VA
- Rated Power (VA) : 1800VA
- Rated Current : 7.5 Amps
- NFB Amps : 7.5 Amps
- AC. Output Voltage : 220 Volts ± 8% Volts, Single Phase – 50 Hz
- Frequency (Adjustable) : 50to60Hz.
- Class of Insulation : F
ENGINE
- Model : HM170P
- Type : SingleCylinderAir-cooled;4-stroke,OHV25˚Inclined
- Maximum Power : 6.5HP
- Bore x Stroke : 70x58
- Displacement : 223cc
- Starting System : Recoil Start
- Ignition System : HM170P
- Fuel : Standard Petrol
- Fuel Tank Capacity : 12 LitersFuel Consumption # Ltr./Hr.1.0 Ltr./hr
- Continuous Operating Hour : 12 hr
- Lube. Oil Capacity : 600 ml
- Lubricating Oil Consumption : 2.5 gm./Hr
Standard Accessories
- AC Plug : 1Pec
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable :1 Set
- Oil Funne : l1 No.
- Owner’s Manua :l1 No.
Panel &Other Standard Features
- A.C. Circuit Protector (NFB) : Yes
- A C.Pilot Lamp : Yes
- Engine Oil Protection : Yes(Electronic Oil Alert & Indicator)
- Fuel Level Gauge : Yes
- A.C. Output Sockets : Yes (1 Nos.)
Size & Weight
- Dimension LxWxH (mm) : 600x450x530 mm
- Dry Weight (Kgs.) : 55 Kgs
Description :
Most Portable & Low Cost but high QualityArc Welding Machine Suitable for all types General Purpose Structural Welding, Light and medium Welding Jobs, Including Pipe Welding Etc. up to 4 mm Electrode.
