HPM 1.2 KVA Petrol Welding Generator Recoil Start


Specification :

• Brand: HPM
• Fuel Used : Petrol
• Model No. : HPW-250D
• Weight (Approx.) : 50 kg


DC WELDING GENRATOR

• Maximum Output (Duty Cycle 60%) : 200 Amps
• Welding Output at 100 % duty Cycle175 Amps
• Working Voltage : 20v to 32v
• Open Circuit Voltage : 70 Volt (Maximum)
• Current Regulation Amps : 75-200
• Rectifying Mode : SCR, Phase Controlled 3-phase, Rectifying Bridge
• Maximum Electrode diameter : 2.6 mm to 4.0 mm (E 7018)
• Alternator Type : Multiphase, Brush less with Rear Earth Magnet Rotor

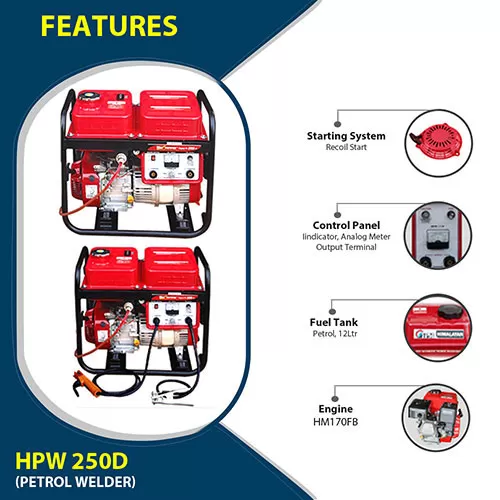

ENGINE

• Model : HM170FB
• Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
• Maximum Power : 7.5 HP
• Bore x Stroke : 70x58
• Displacement :223cc
• Starting System : Recoil Start
• Ignition System : TCI (Transistor Control Ignition)
• Fuel : Standard Petrol
• Fuel Tank Capacity : 12 Liters
• Fuel Consumption # Ltr./Hr. (at 60 % Duty Cycle) : 1.0Ltr./hr
• Continuous Operating Hour : 12 hr
• Lube. Oil Capacity : 600 ml
• Lubricating Oil Consumption : 2.5 gm./Hr.

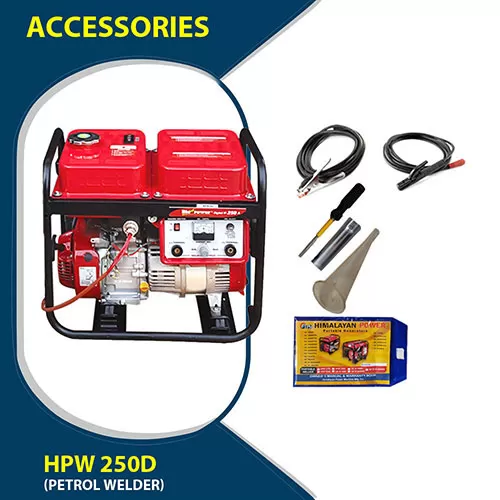

Standard Accessories

• Tool Kit : 1 Set
• Welder Holder : 1 Set
• Earthing Clamp with 3Mtr. Cable : 1 Set
• Oil Funnel : 1 No
• Owner’s Manual1 : No.

Panel &Other Features

• Aux. AC Output  : 230 Volt - 50 Hz  : Invertor 1200 VA – 220 Volt AC, 50 Hz (Optional)
• Overload Protection (NFB) : Yes (Inverter)
• Power Indicator : No
• Ampere Meter : Yes
• Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
• Fuel Level Gauge : Yes

Size & Weight

• Dimension LxWxH (mm) : 600x450x530  mm
• Dry Weight : (Kgs.)50  Kgs

Description :

World’s Most Portable, Professional & Low Cost Arc Welding Machine Suitable for High Class Welding Including Structural Welding Rods 7018 Size 4mm Electrode.
