Mitsuyama 12HP Diesel Power Tiller, PTO Shaft, Recoil Start, MY-585D

Specification

• Model : MY-585D
• Product Type : Diesel Power Tiller
• Brand : Mitsuyama
• Fuel Tank Capacity : 3.6 L
• Fuel Consumption : 650 ml/hr
• Displacement : 406 CC
• Fuel : Diesel
• Stroke : 4 Stroke
• Engine Model : 186F Diesel Engine
• Power : 12HP
• Speed : 3600 RPM
• Transmission : Gear Drive
• Gear Type : R,0,1,2
• Start Type : Recoil
• Handle Bar System : Up/Down, Left/Right
• Tyre : 5.0 * 12 (Tubeless)
• Engine oil -  1.65L(20w40/ 15w40)
• Gearbox oil - 2.5L(SA90 )
• Blades :40 pcs
• Tilling Depth : 5 - 9 Inch (12.7~22.86 cm) Approx
• Tilling Width : 24- 50 Inch Adjustable (61-127 cm) Approx
• Weight : 140 Kg (Approx.)

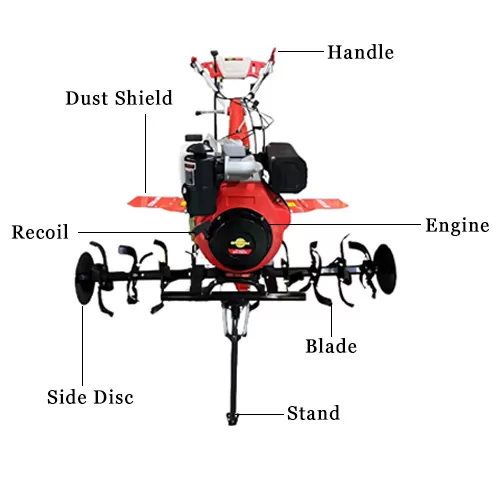

Accessories

• Solid Tubeless Tyre
• 2 Pc Rotary Shaft
• Side Disc
• Back Rod
• Toolkit

Description

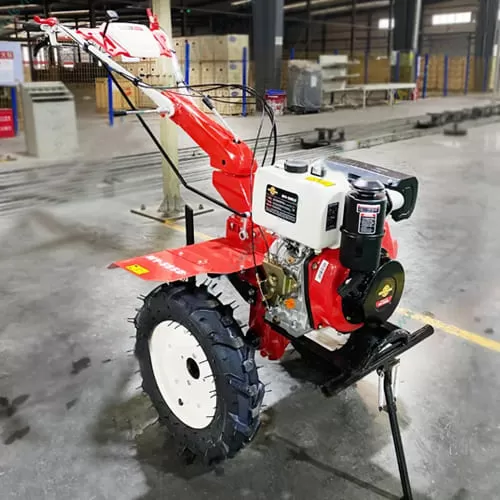

Mitsuyama MY-585D 12HP Diesel Power Tiller for agriculture is suitable for Wet, Dry, and Muddy Land it can till up to 50-inch (127 cm) Approx. width and 5 - 9 Inch (12.7~22.86 cm) Approx depth in soil with a speed of 3600 RPM and has 2 forward and 1 Reverse Gear.
