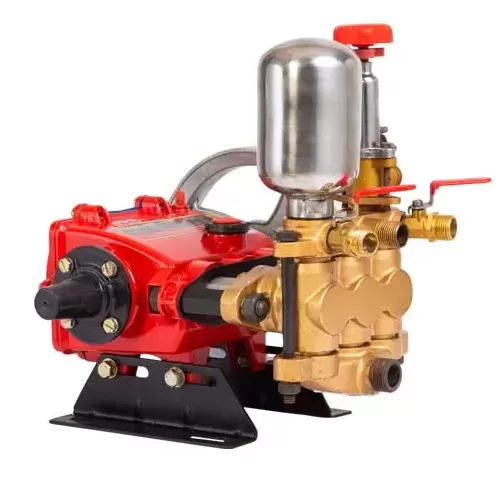

Aspee HTP Horizontal Triplex Piston High Sprayer PS/16

Aspee  HTP Horizontal Triplex Piston High Sprayer PS/16

Features

• Heavy duty & efficient Sprayer with SG casting Valve Box, Delivery chamber & Suction chamber Assembly
• Industrial grade material widely used in Agricultural Applications
• Triplex Stainless steel piston & oil bath lubrication
• More durable & reliable SG casting

Specification

• Brand : Aspee
• Model No :PS/16
• Ideal For : Farm Spray & Tractor Spray
• Normal working pressure :100-200 psi(7-14 bar)
• Maximum Pressure : 400 psi(28 bar)
• Material of Valve Box, Delivery chamber & Suction Chamber SG IRON
• Pump revolution : 950 rpm
• Power requirement 3Hp
• Dimensions : LxWxH265x230x260 mm
• Suction Capacity :36 lit/min
• Weight :15 .3 Kg Approx.

Description

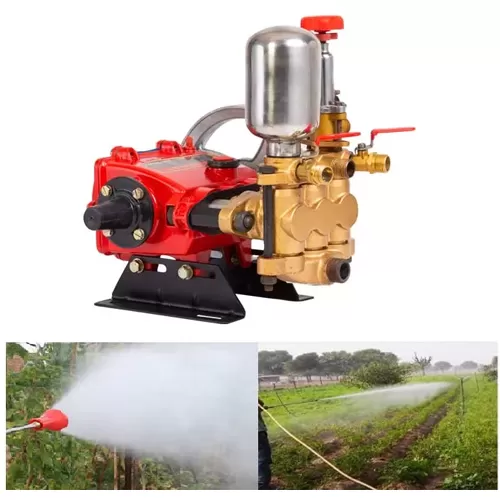

As the HTP pump is made  of cast body which makes it very heavy and it has unique design for heat absorbing capacity. The machine give a very high pressure and we can use this pump for multipurpose spraying work like car and bike washing, agriculture spraying work in field and I orchard for spraying tall and big trees. and used for industrial spraying works as well.
